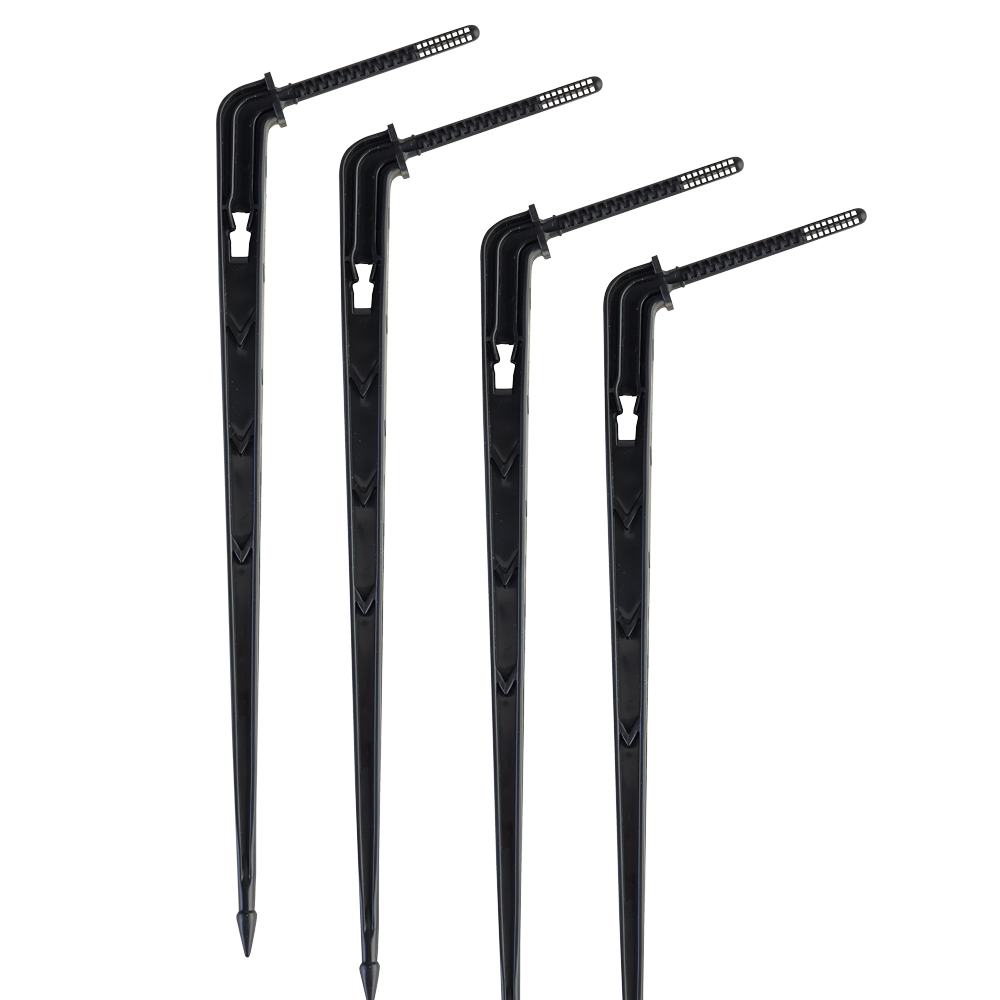

Jain Irrigation Labyrinth Stake

Price
₹224
Tax included. Shipping calculated at checkout.
Packaging specifications:

Specifications

Pack Size:
50 PCS
Type:
Elbow
Flow Rate:
2.1 LPH
Features

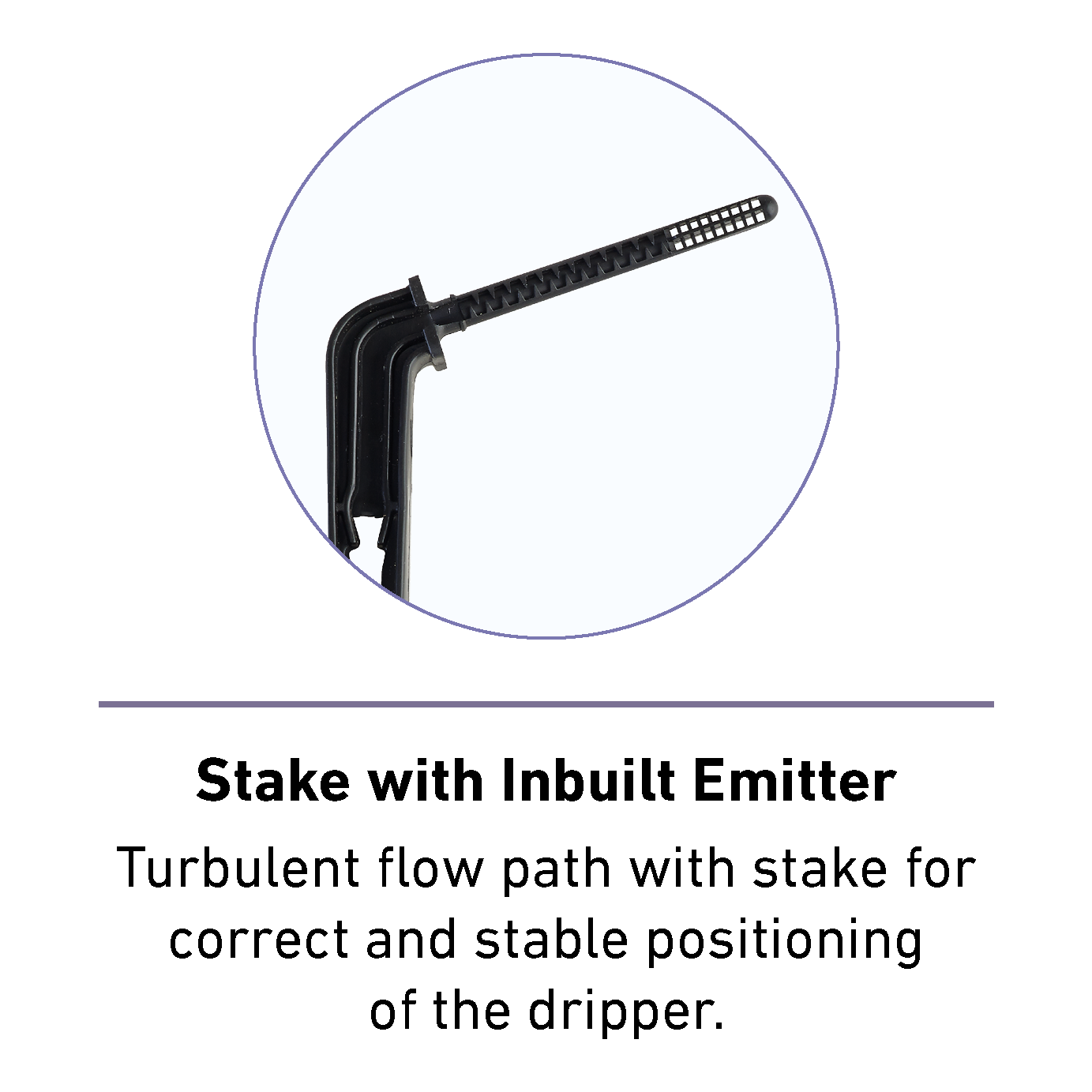

  • Stake with Inbuilt Emitter : Turbulent flow path with stake for correct and stable positioning of the dripper.

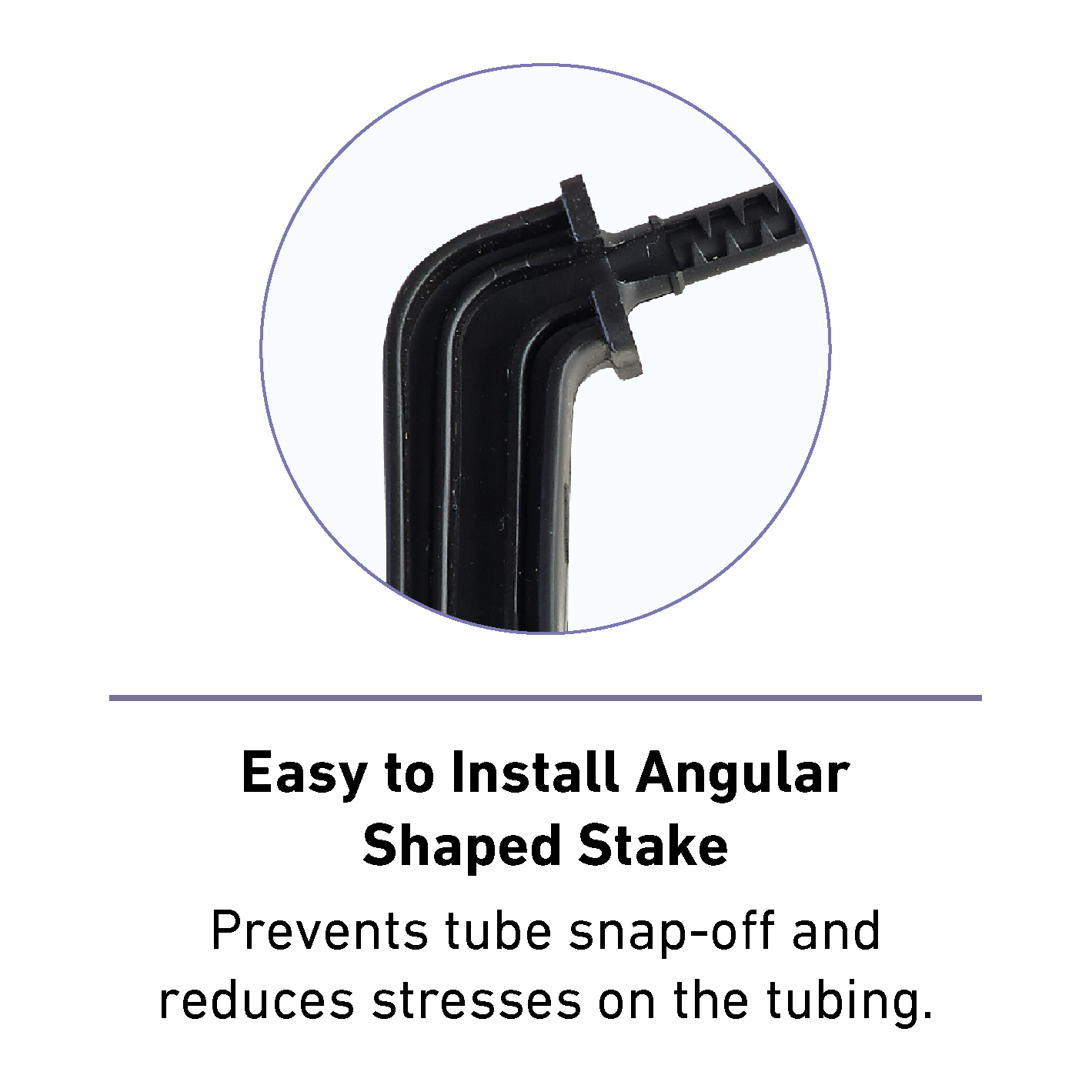

  • Easy to Install Angular Shaped Stake : Prevents tube snap-off and reduces stresses on the tubing.

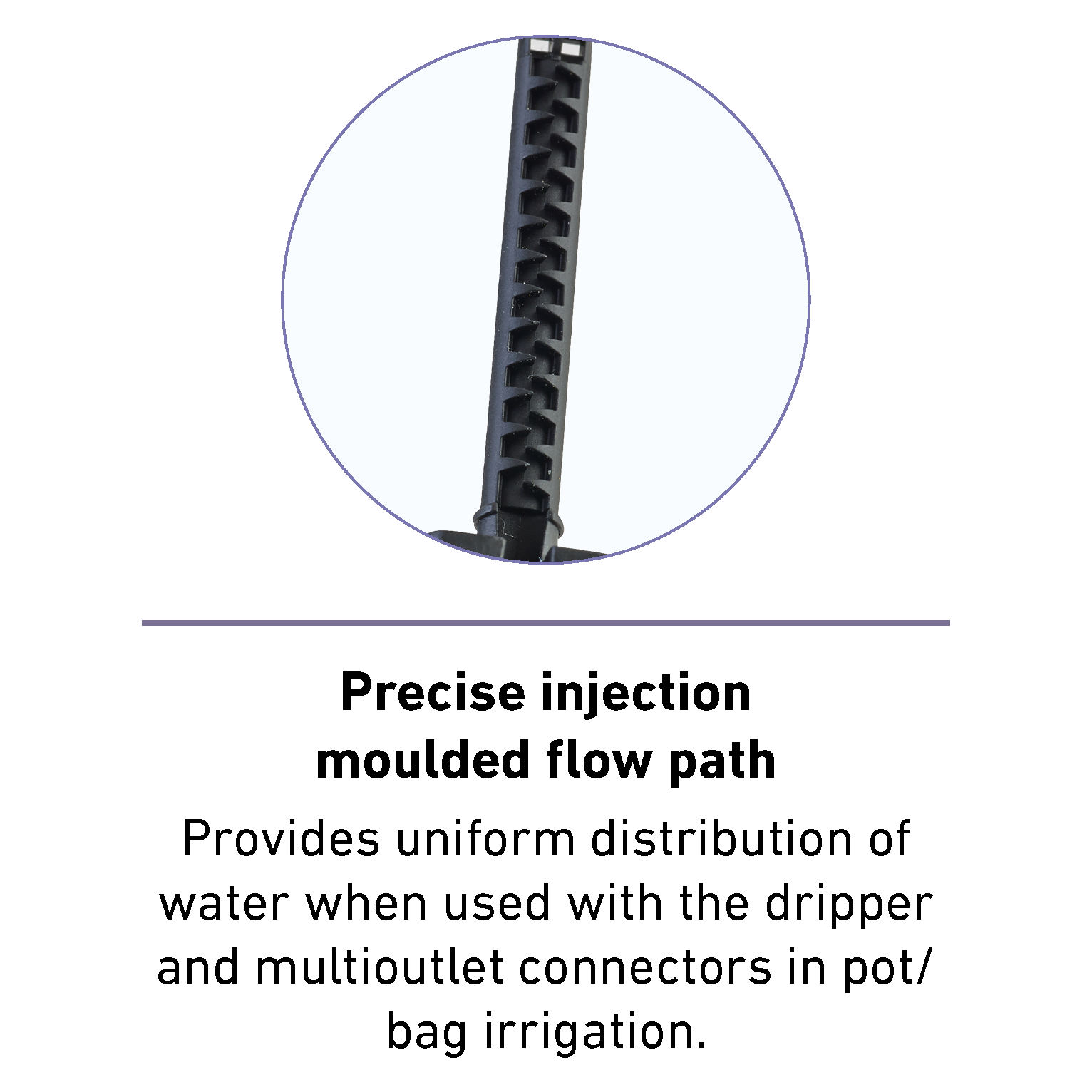

  • Precise injection moulded flow path : Provides uniform distribution of water when used with the dripper and multioutlet connectors in pot/ bag irrigation.

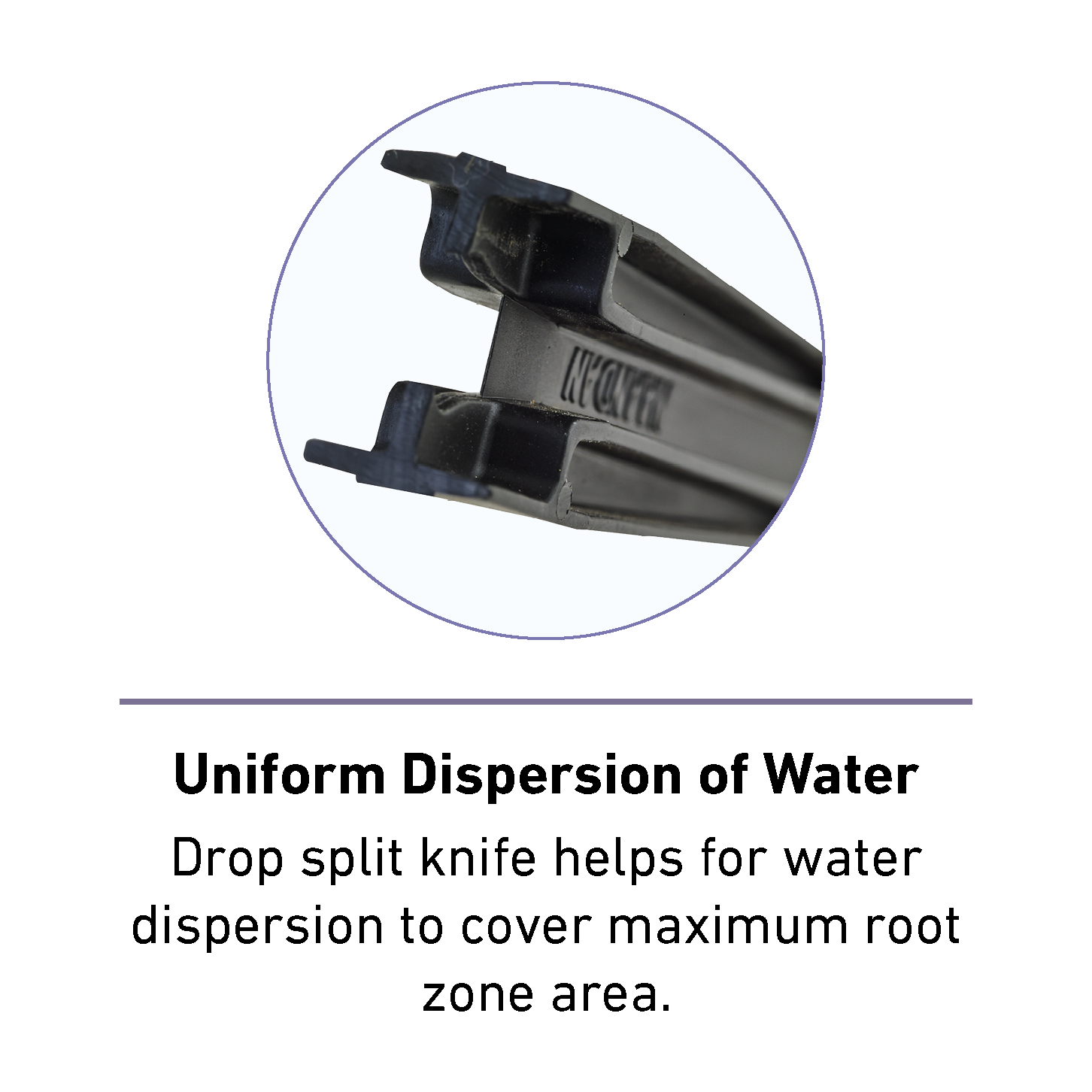

  • Uniform Dispersion of Water : Drop split knife helps for water dispersion to cover maximum root zone area.

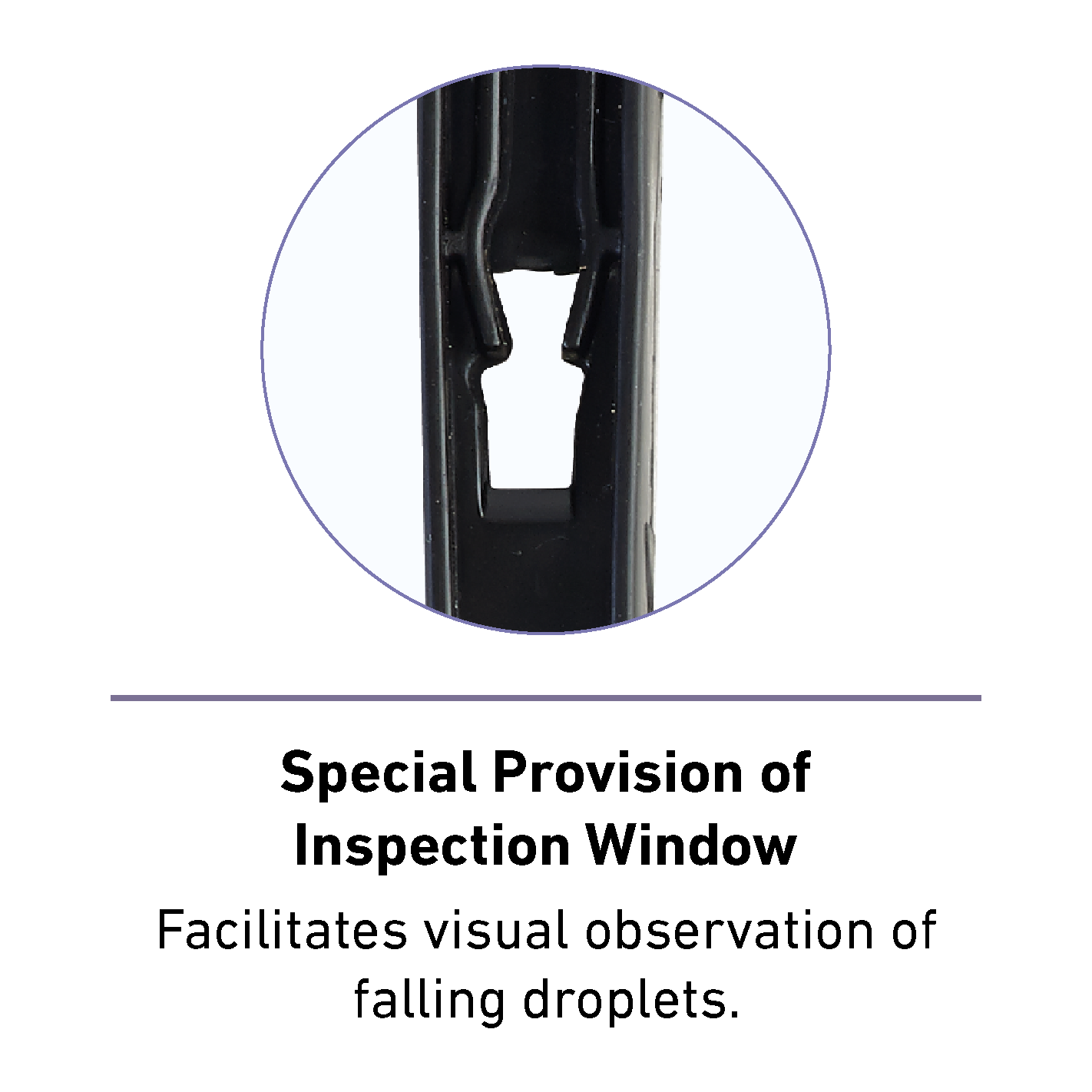

  • Special Provision of Inspection Window :Facilitates visual observation of falling droplets.
  • Multipurpose Utility : Can be used as an independent dripper or with online emitter to divide the flow uniformly.

Additional Features
Application

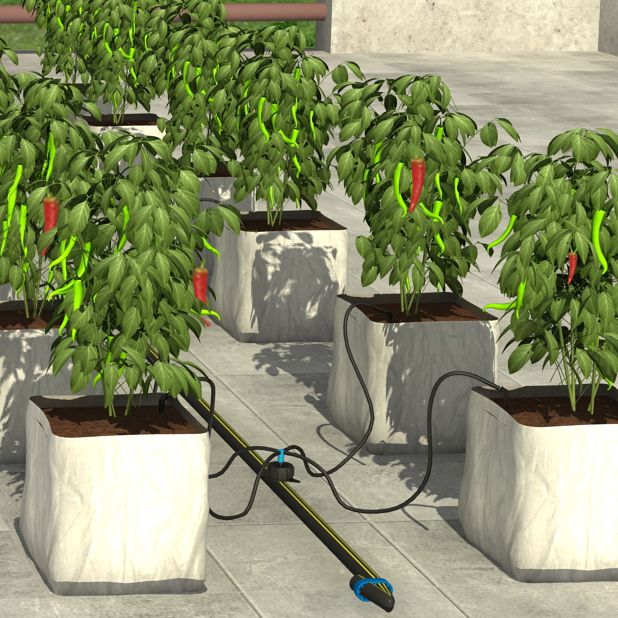

  • Suitable for pot irrigation, nurseries, glass/green houses,vegetables, home gardens.

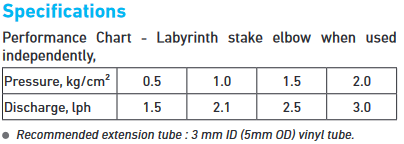

Specifications
  • Minimum recommended working pressure: 1 kg/cm2.
  • Maximum recommended flow per outlet: 2.0 l/h.
  • Minimum recommended flow per outlet:
    - Flat surface and uniform tube length - 0.5 l/h
    - On a slope or uneven elevation - 1.0 l/h
  • When used with dripper and multi-outlet connector, ensure that level difference between the pots/bags shall not be more than 5cm.
  • Filtration recommendation 130 micron or less. Actual
    quality of filtration can be decided by quality of source water.
  • Please refer to our “Maintenance Manual” for further
    details.
In stock and ready for shipping
