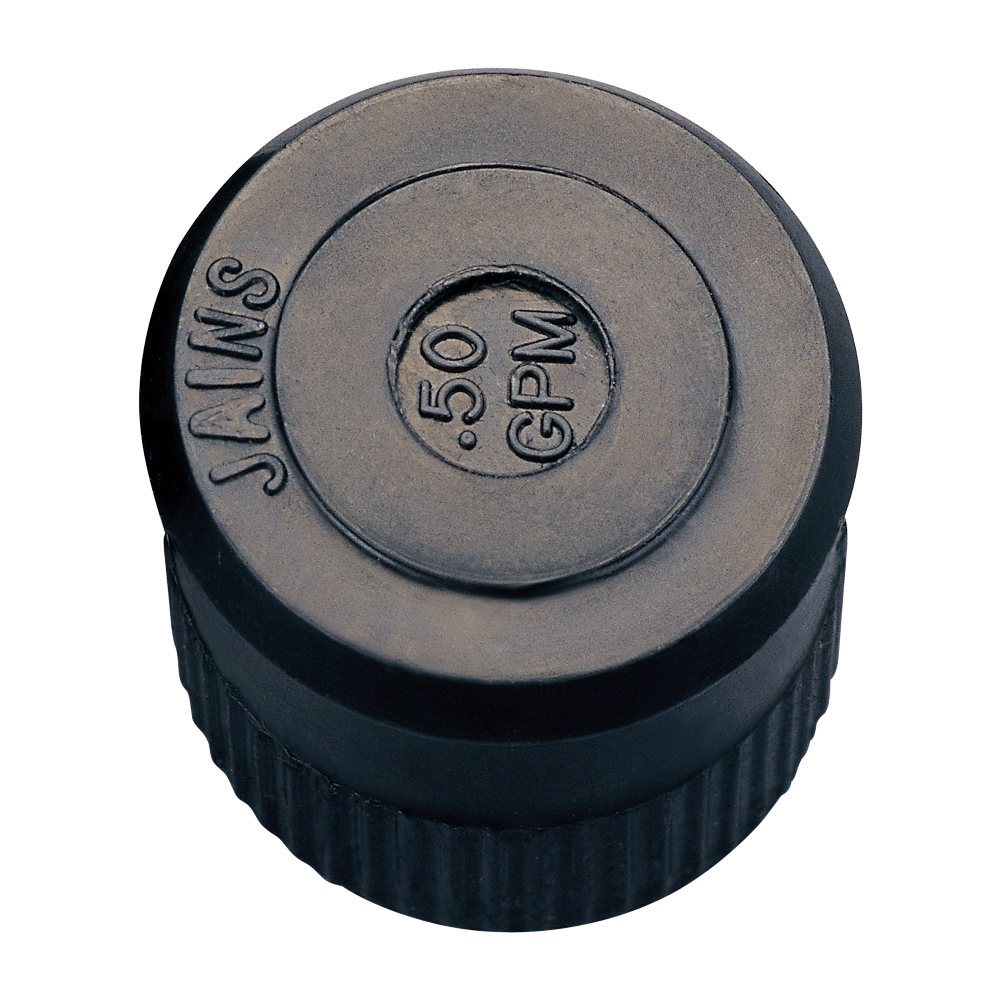

Jain Irrigation J-Bubbler - Pressure compensating

Price
₹1,510
Tax included. Shipping calculated at checkout.
Packaging specifications:

Specifications

Operating pressure :
1.25 LPM
Pack Size :
50PCS
Features

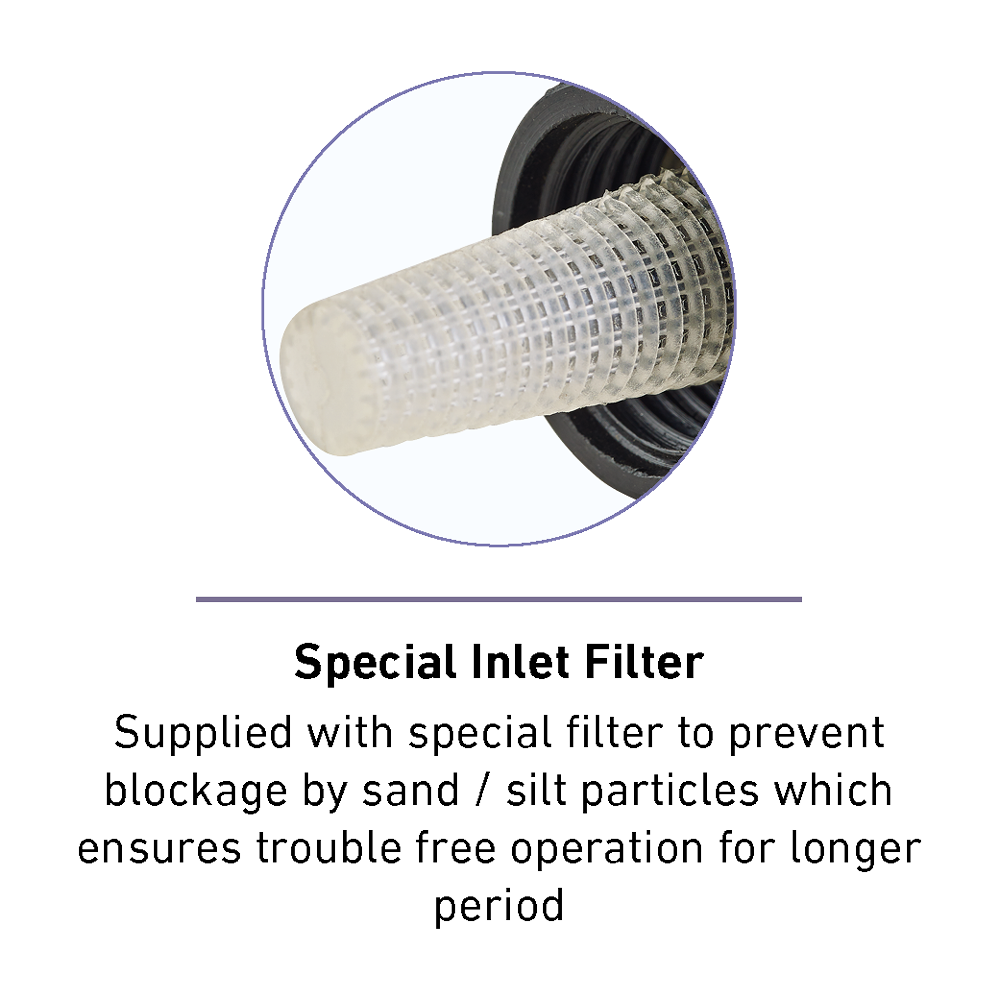

  • Special Inlet Filter - Supplied with special filter to prevent blockage by sand / silt particles which ensures trouble free operation for longer period

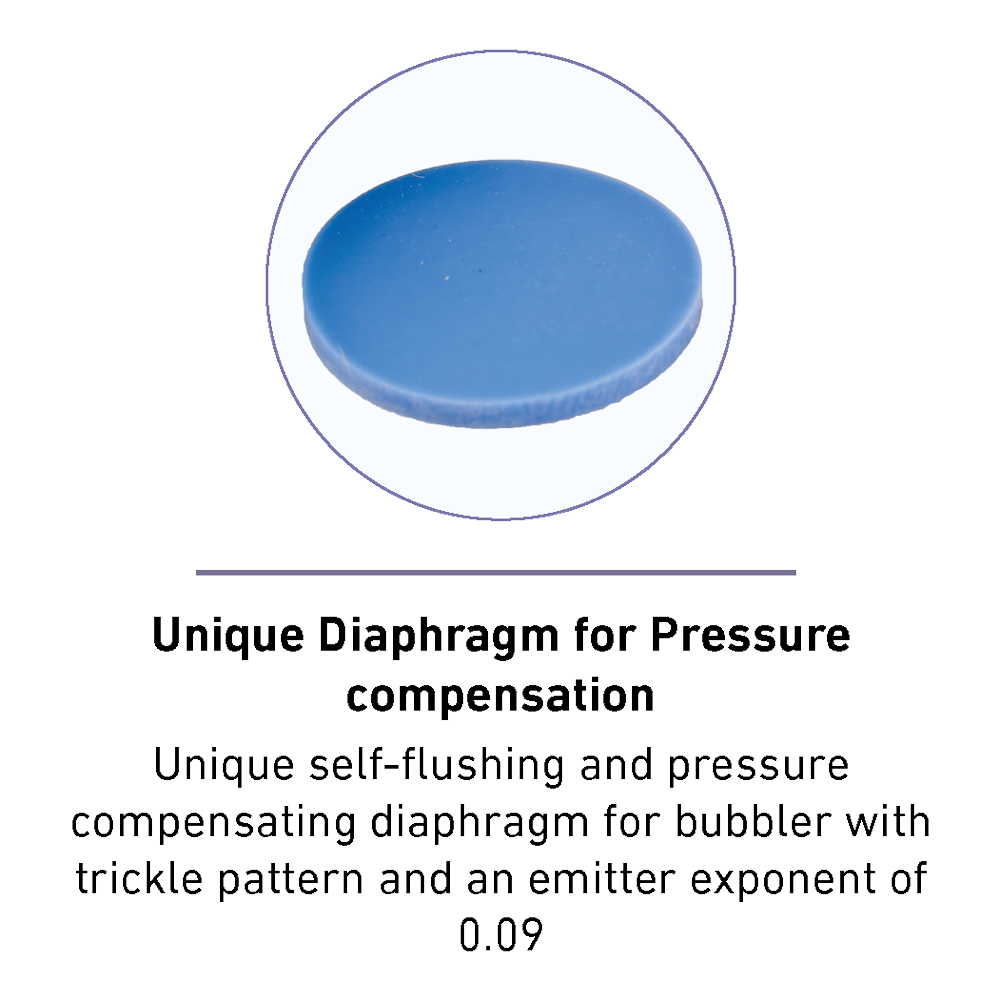

  • Unique Diaphragm for Pressure compensation - Unique self-flushing and pressure compensating diaphragm for bubbler with trickle pattern and an emitter exponent of 0.09

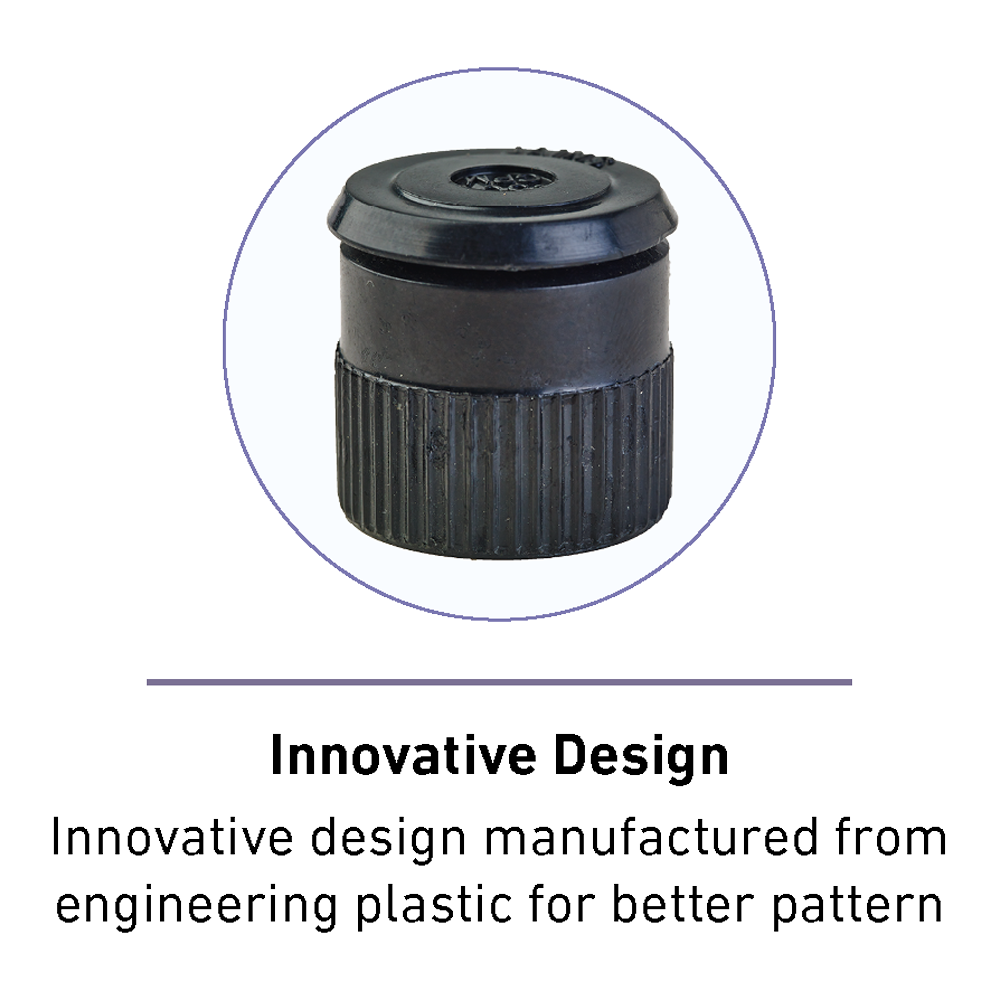

  • Innovative Design - Innovative design manufactured from engineering plastic for better pattern
  • Threaded Inlet Connection - Threaded inlet connection provided for connectivity with system

Additional Features
  • Manufactured from stable engineering plastic ½” BSP female threaded inlet.
  • Special inlet filter screen to prevent clogging.
  • Can be easily mounted on stake for bubbler or on
    multipurpose stake with adaptor for bubbler or on PVC risers
  • Supplied with special filter to prevents blockage by sand/ silt particles which ensures trouble free operation for longer period
  • Bubbler stake assembly with 13mm ID, 12 & 16mm OD
  • tubing in required length available on demand

Application
  • Suitable for palms, trees, shrubs etc. planted over undulating terrain and where uniform flow is essential
  • Suitable for controlled irrigation of trees having high water requirements
Specifications
  • Flow rates(lph) : 72 - 240
  • working pressure(kg/cm²) : 1.0-3.0
In stock and ready for shipping
