Jain Irrigation Acurain 5035 SD Part Circle

Price
₹415
Tax included. Shipping calculated at checkout.
Packaging specifications:

Specifications

Nozzle Size:
3.5 mm
Pack Size:
1 PCS
Features

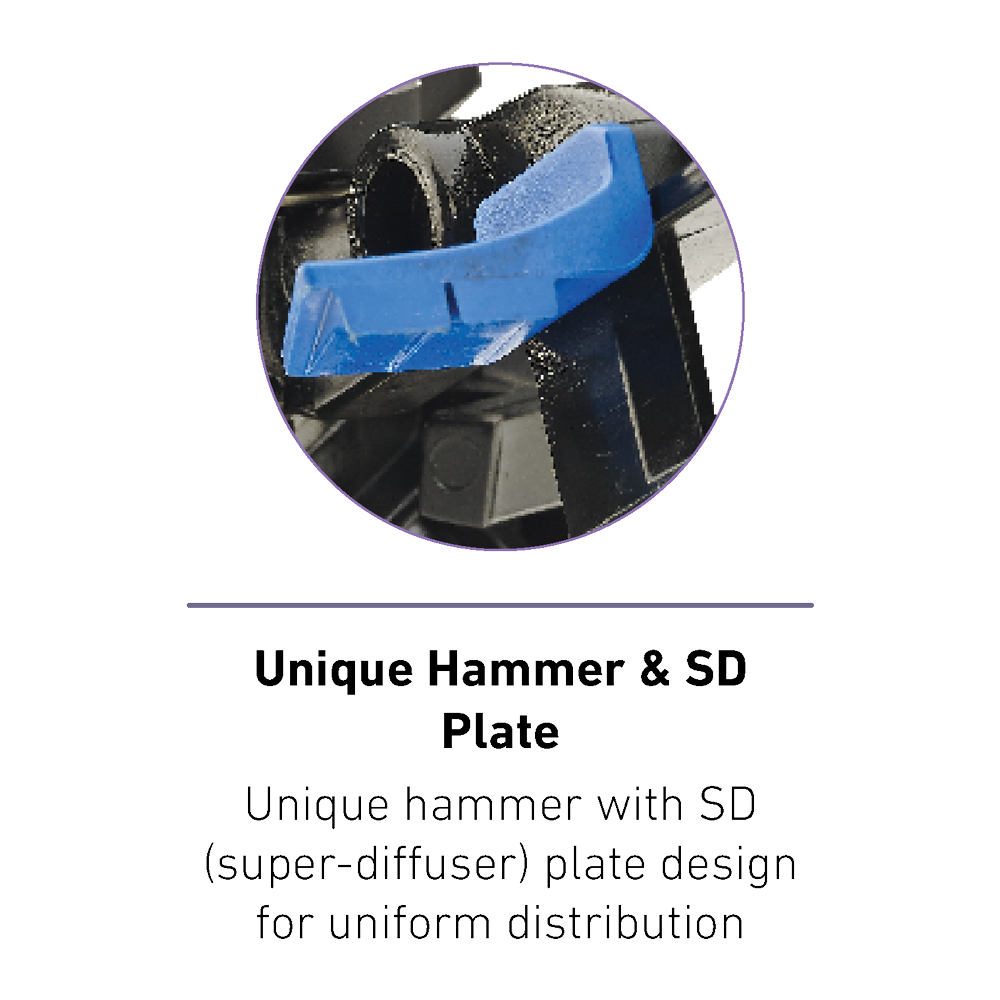

  • Unique Hammer & SD Plate : Unique hammer with SD (super-diffuser) plate design for uniform distribution.

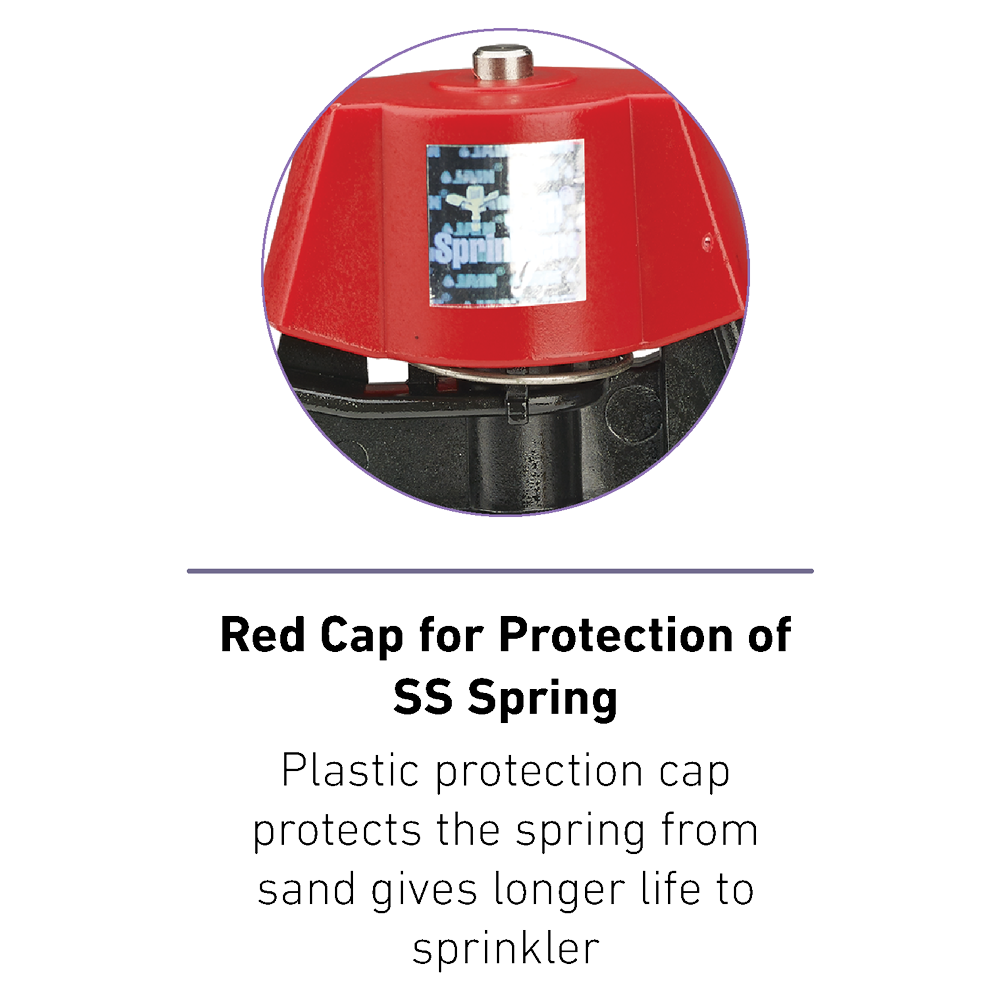

  • Red Cap for Protection of SS Spring : Plastic protection cap protects the spring from sand gives longer life to sprinkler.

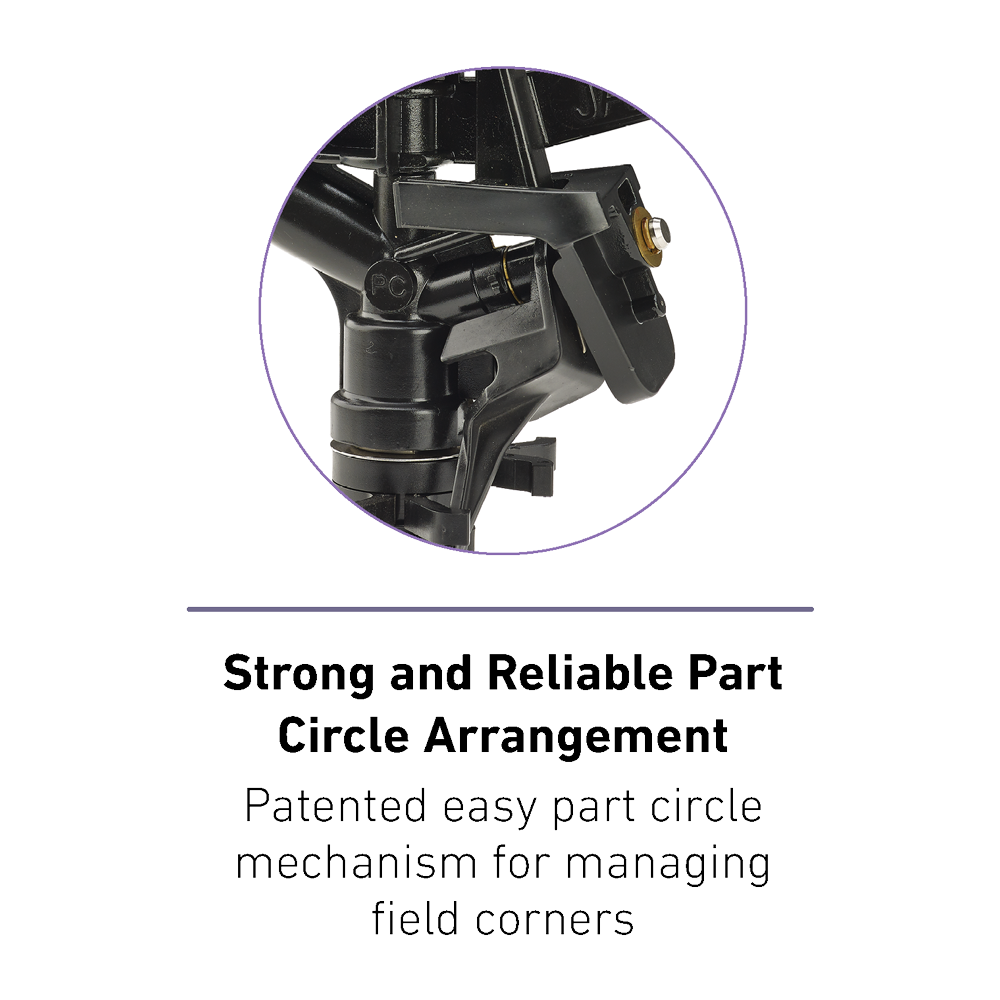

  • Finger Tip Adjustment : Fixed engineering polymer
    lower trip assembly for part circle mechanism.

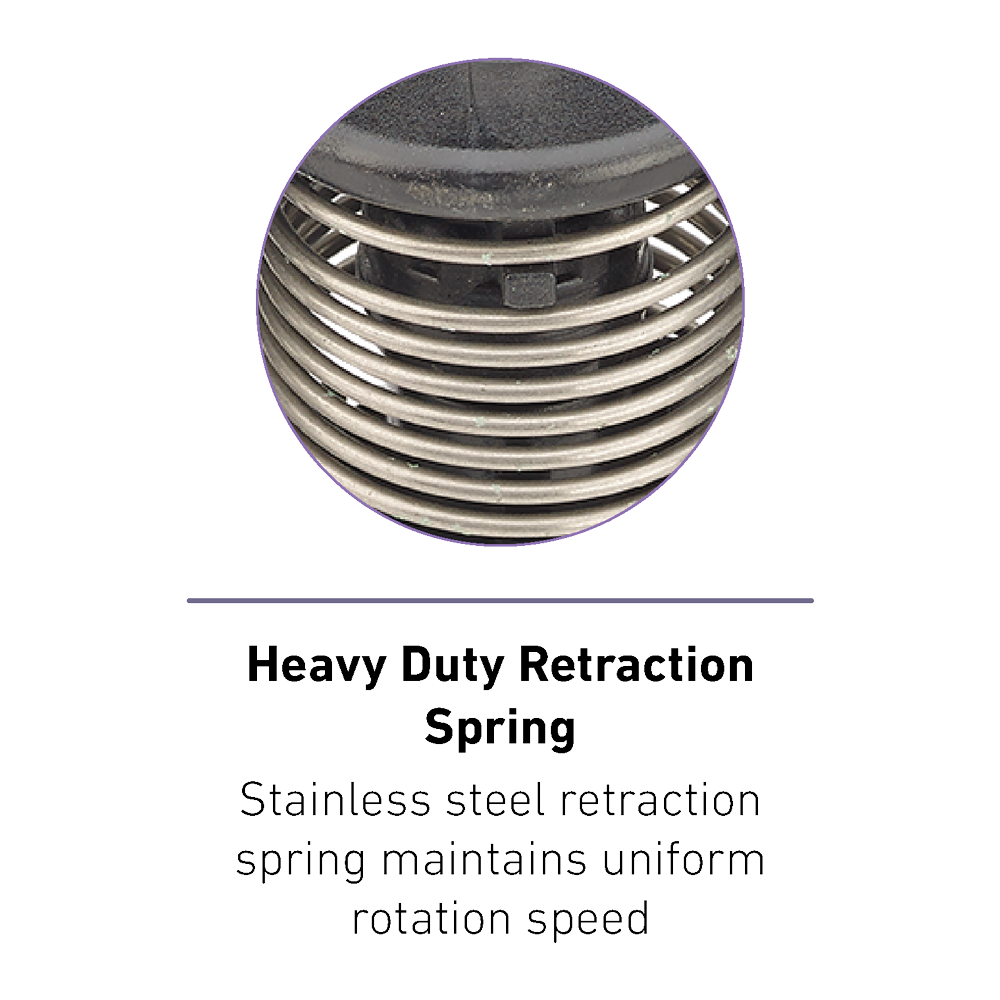

  • Heavy Duty Retraction Spring : Stainless steel retraction spring maintains uniform rotation speed.

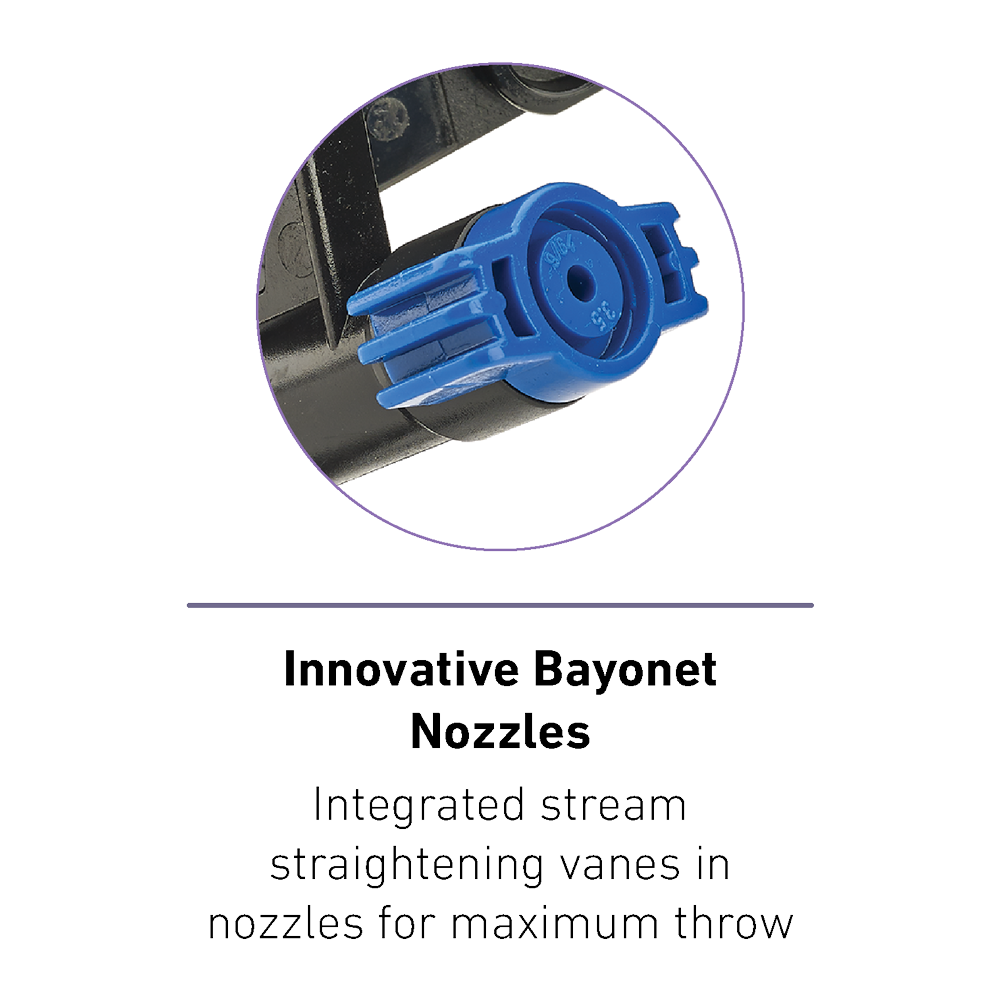

  • Innovative Bayonet Nozzles : Integrated stream
    straightening vanes in nozzles for maximum throw.

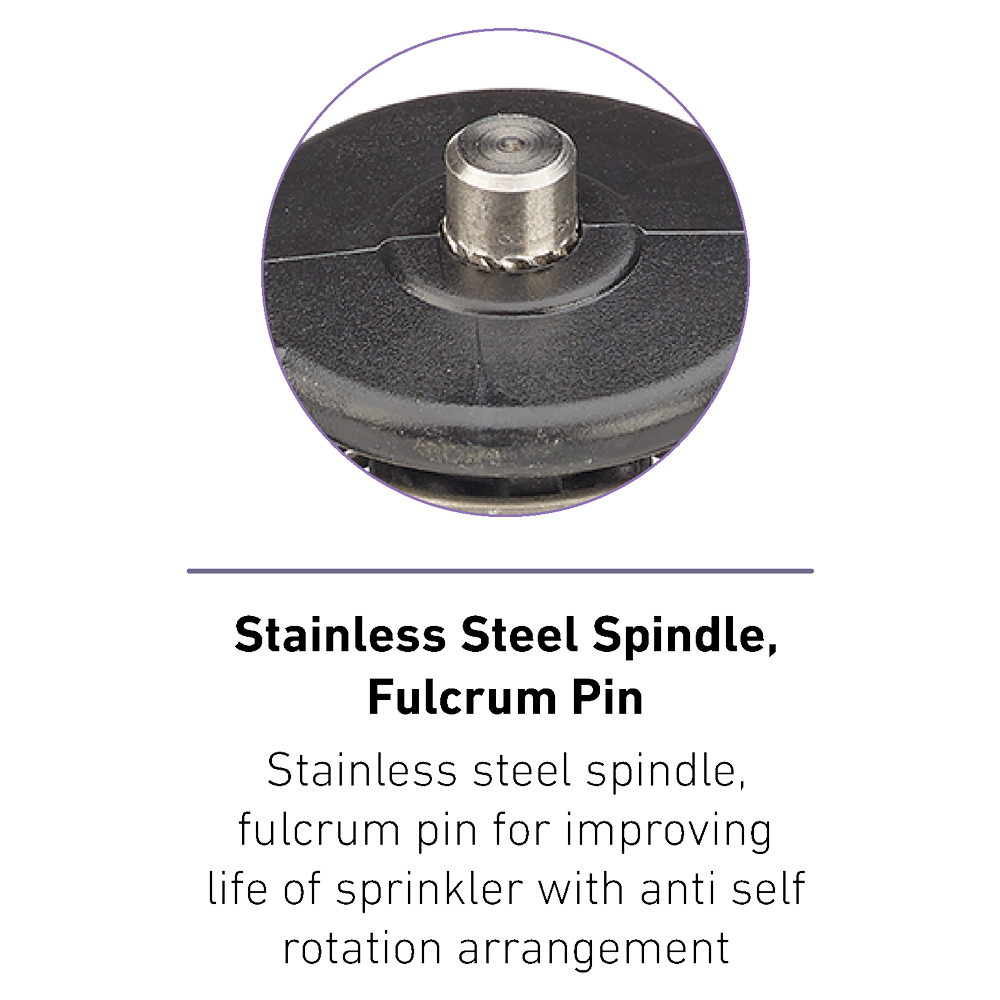

  • Stainless Steel Spindle, Fulcrum Pin : Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti self rotation arrangement.

Additional Features
  • Suitable for field crops like pulses, oil seeds,vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.
  • Used for irrigation of edges in various field crops
Application
  • High-impact, resistant, heavy-duty plastic materials
    provide resistance to corrosion, chemicals and UV radiation
  • Easy to install and maintain
  • Uniform precipitation rate
  • Higher resistance to wind
  • Each batch is tested for stringent quality parameters

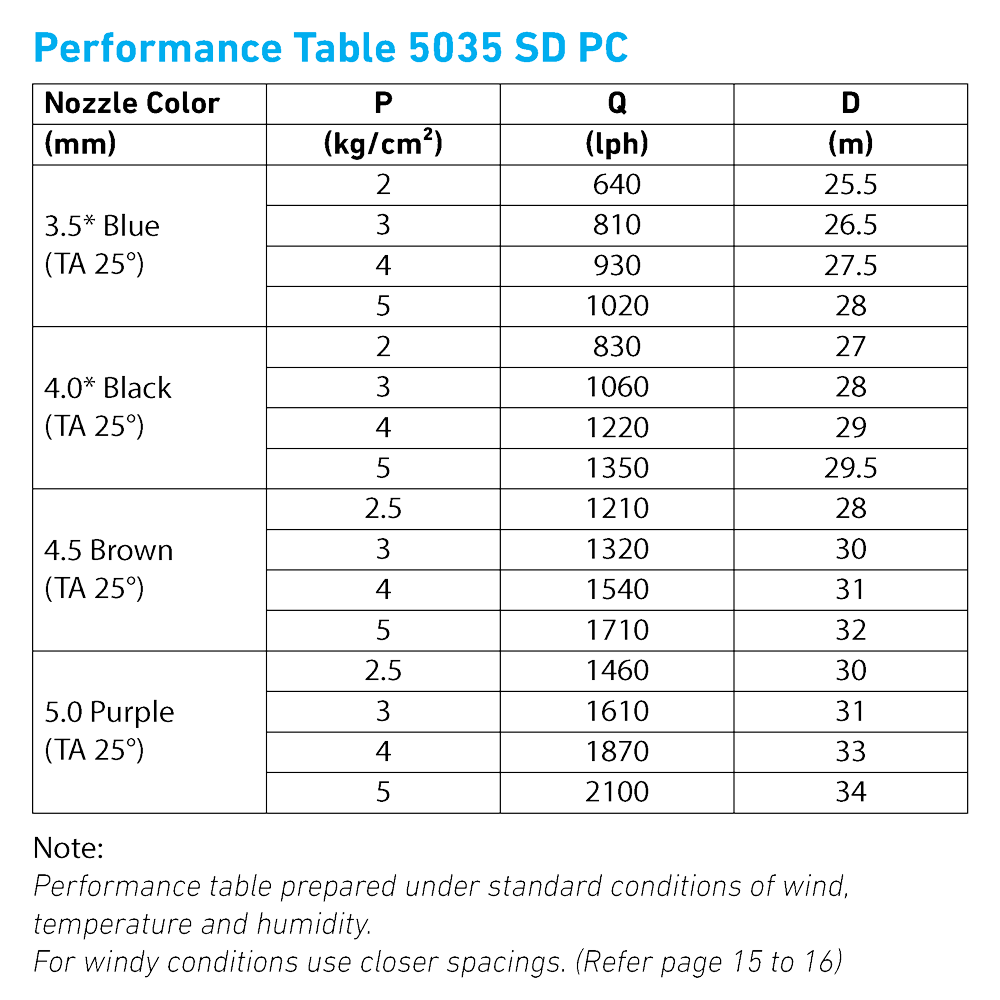

Specifications
  • Discharge : 720 to 2100 lph
  • Diameter : 26 to 34 m
  • Operating Pressure : 2.5 to 5 Kg/cm²
  • Inlet Connection : 3/4” male Threaded
  • Usability : Quick Connect System
In stock and ready for shipping
